Five Advantages Of Products

  • Martindale Abrasion Tester can accurately test the wear amount of materials, and the test results are accurate and reliable. Martindale Abrasion Tester adopts high-quality materials and parts, which has high reliability and durability. It is not easy to break down after long-term use. It has high-precision measurement results and high reliability.

  • Martindale Abrasion Tester is suitable for the wear test of various materials, including metal, plastic, rubber, paint, ceramics, etc., and its measurement range is wide.

  • The Martindale Abrasion Tester uses a highly stable motor and control system, which can maintain the stability of the test process and reduce errors.

  • The Martindale Abrasion Tester is easy to operate, just set the test parameters and start the test.

  • The Martindale Abrasion Tester adopts computer control, which realizes the automatic collection and processing of test data, and the degree of automation greatly improves the test efficiency.

Product Details

Martindale wear tester products meet the standards:

BS-3424, ASTM-D4966, DIN-53863, SATRA,TM31, ISO-20344

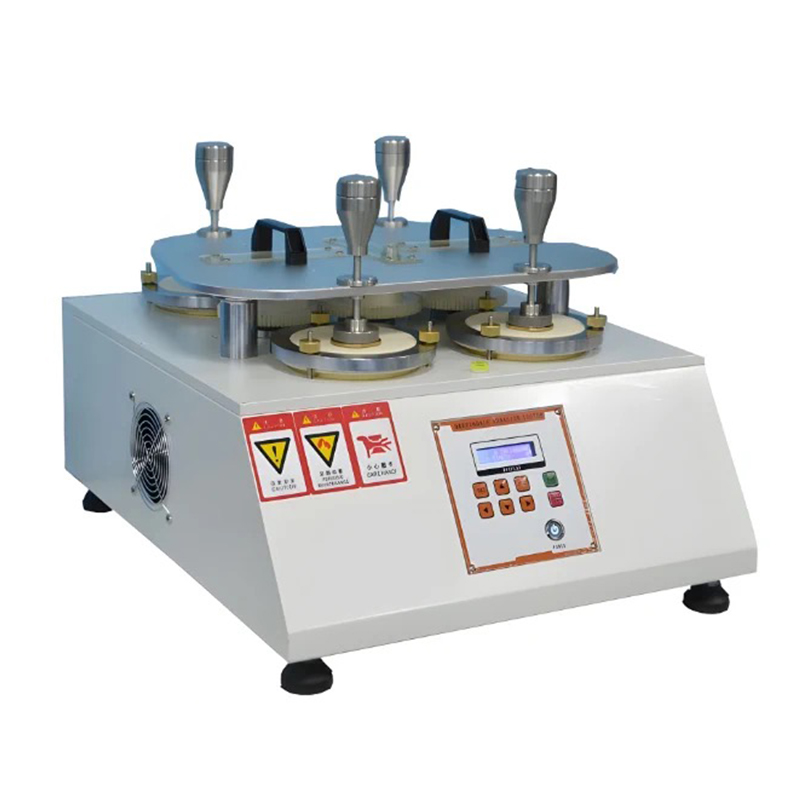

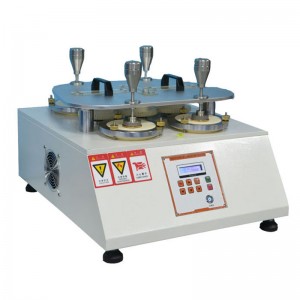

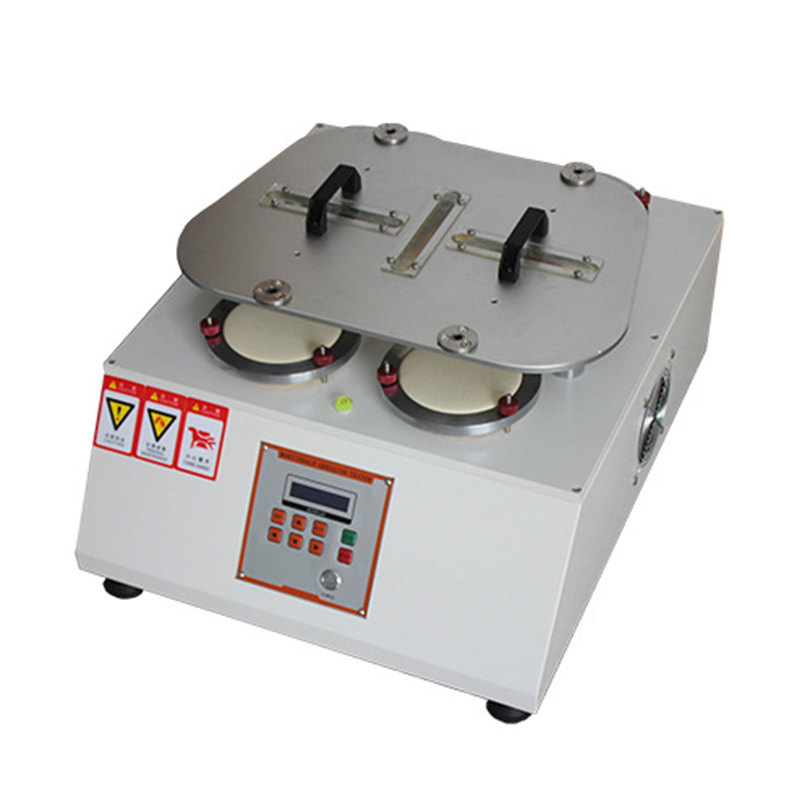

Product introduction of Martindale Abrasion Tester :

The instrument is designed by absorbing the advantages of similar instruments at home and abroad. It has a beautiful appearance, an easy-to-understand interface, and is easy to operate. The microcomputer system adopts two counting methods, which are intuitive and easy to set. There are two kinds of LISSAJOUS (LISSAJOUS) 24MM × 24MM, 60.5MM × 60.5MM motion trajectory and a variety of supporting accessories can be purchased, which can adapt to a variety of test method standards.

Reminder: Due to the continuous upgrade of the Martindale wear tester, the picture of the Martindale wear tester is for reference only, please consult by email for details! More high-quality products welcome your consultation!


The Martindale Abrasion Tester is suitable for:

GB/T4802.2, ASTM D4970, IS012945-2 and other tests for the degree of pilling of fabrics.

of the Martindale Abrasion Tester :

The circular sample is rubbed against the fabric of the same material under a given pressure with the trajectory of the LISSAJOUS graph, and after the specified number of revolutions, the pilling level of the sample is evaluated.

The main specifications and parameters of the Martindale Abrasion Tester :

Number of stations : 4/6/8

The count shows :

A. Estimated count: 0~999999 times

B. Cumulative counting: 0~999999 times

Movement: 24 ± 0.5MM, 60.5 ± 0.5MM

Pressurized substance quantity:

A. Holder: 200 ± 1G

B. Clothing sample weight: 395 ± 2G

C. Weight of furniture decoration sample: 594 ± 2G

D. Stainless steel butterfly: 260 ± 1G

Relative movement speed between holder and grinding table: 50-2R/MIN

Loading hammer mass: 2385 ± 10G

Dimensions: 885×600×410MM ( L×W×H )

Power supply: AC220V

Station selection: four/ six/eight stations are available


Precautions for using the Martindale Abrasion Tester :

1. The instrument must be placed on a stable ground before use.

2. It is not allowed to move the machine during use;

3. Select the corresponding power supply voltage, not too high, to avoid burning out the device;

4. When the instrument is abnormal, please contact our company for timely processing;

5. There must be a good ventilation environment when the machine is working.

6. For each component of the button mechanism, due to the large operating load, please add lubricating oil to the mechanical part in time;

7. After each test, clean up the machine and keep it clean;

8. The control box part must be wiped with a dry cloth, not a wet cloth.


Routine maintenance and maintenance of Martindale wear tester:

Troubleshooting :

1. If there is no display when the power is turned on, it means that the power is not connected or the power indicator is damaged. If the power indicator is damaged, just replace the indicator. If there is no power output from the power output terminal, please check the power cord or the power socket.

2. If the power supply is turned on, the power indicator light has an indication, and the machine does not work after pressing the start button, please check whether the relay is disconnected or disconnected. Please connect it in time. If there is no disconnection in the relay, explain If the relay is damaged, it should be replaced in time.

footprint .

3. When the test reaches the number of times set by the counter, the motor still does not stop working, indicating :

( 1 ) The counter is damaged .

( 2 ) The counter is not cleared after setting the number of times.

4. If the power indicator light is on but the counter has no display, it means that the counter is damaged, and the counter needs to be replaced.


Reminder: Due to the continuous upgrade of the Martindale wear tester, the picture of the Martindale wear tester is for reference only, please consult by email for details! More high-quality products welcome your consultation!
